MBRB1645T4G Tantalum Chip Capacitor Diode 45 V 16A 45 V 16A
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | MBRB1645T4G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | MBRB1645T4G | Voltage - DC Reverse (Vr) (Max): | 45 V |
|---|---|---|---|
| Current - Average Rectified (Io): | 16A | Voltage - Forward (Vf) (Max) @ If: | 630 MV @ 16 A |
| CCurrent - Reverse Leakage @ Vr: | 200 µA @ 45 V | Operating Temperature - Junction: | -65°C ~ 175°C |
Product Description
MBRB1645T4G Tantalum Chip Capacitor Diode 45 V 16A 45 V 16A

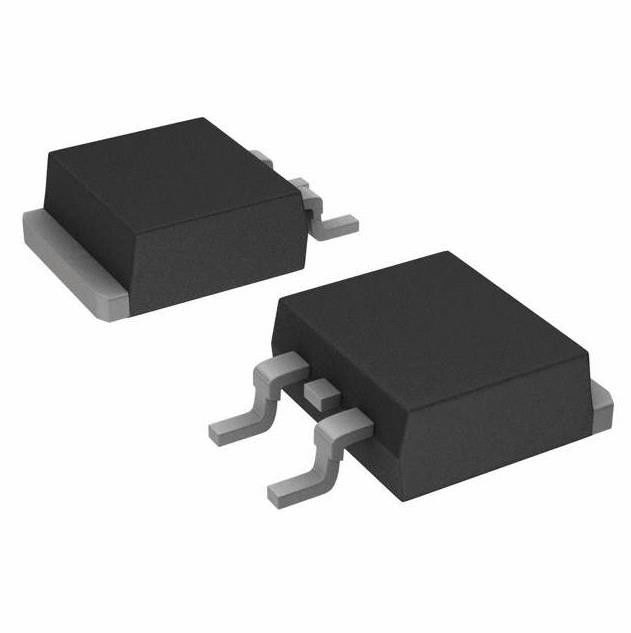

Diode 45 V 16A Surface Mount D²PAK
Features of MBRB1645T4G
• Guard−ring for Stress Protection
• Low Forward Voltage
• 175°C Operating Junction Temperature
• NRVB Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
• Case: Epoxy, Molded
• Weight: 1.9 Grams for TO−220
1.7 Grams for D2PAK
• Finish: All External Surfaces Corrosion Resistant and Terminal
Leads are Readily Solderable
• Lead Temperature for Soldering
Specifications of MBRB1645T4G
|
Product
|
MBRB1645T4G
|
|
Technology
|
Schottky
|
|
Voltage - DC Reverse (Vr) (Max)
|
45 V
|
|
Current - Average Rectified (Io)
|
16A
|
|
Voltage - Forward (Vf) (Max) @ If
|
630 mV @ 16 A
|
|
Speed
|
Fast Recovery =< 500ns, > 200mA (Io)
|
|
Current - Reverse Leakage @ Vr
|
200 µA @ 45 V
|
|
Capacitance @ Vr, F
|
-
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
|
|
Supplier Device Package
|
D²PAK
|
|
Operating Temperature - Junction
|
-65°C ~ 175°C
|
|
Base Product Number
|
MBRB1645
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
