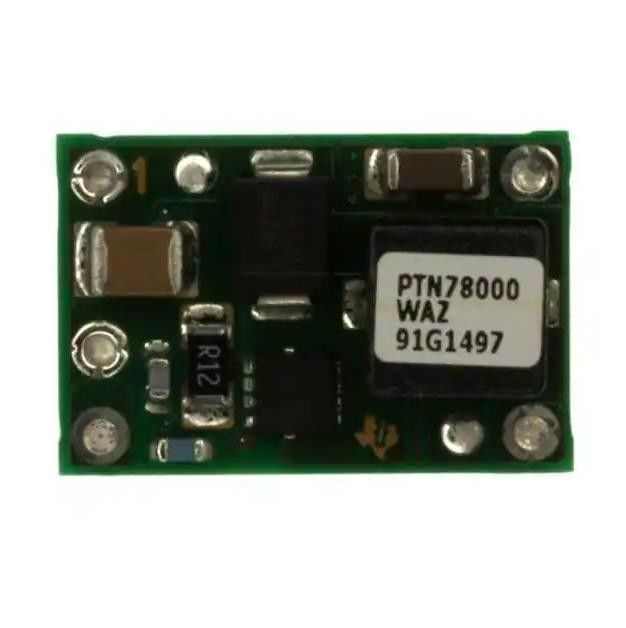

PTN78000WAZT Module DC Converter 1 Output 2.5 ~ 12.6V 1.5A 7V - 36V Input
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | PTN78000WAZT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | OCP, OTP, UVLO | Part No: | PTN78000WAZT |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Input (Min): | 7V |
| Voltage - Input (Max): | 36V | Voltage - Output: | 2.5 ~ 12.6V |
| Current - Output (Max): | 1.5A | Package / Case: | 5-SMD Module |
Product Description
PTN78000WAZT Module DC Converter 1 Output 2.5 ~ 12.6V 1.5A 7V - 36V Input
Non-Isolated PoL Module DC DC Converter 1 Output 2.5 ~ 12.6V 1.5A 7V - 36V Input
The PTN78000 is a series of high-efficiency, step-down Integrated Switching Regulators (ISR), that represent the third generation in the evolution of the popular 78ST100 series of products. In new designs it should be considered in place of the 78ST100,PT78ST100,PT5100,and PT6100 series of single in-line pin(SIP)products. The PTN78000 is smaller and lighter than its predecessors, and has either similar or improved electrical performance characteristics.The case-less,double-sided package, also exhibits improved thermal characteristics, and is compatible with TI's roadmap for RoHS and lead-free compliance.
Features of PTN78000WAZT
1.5-A Output Current · Wide-Input Voltage
(7V to 36 V)/(15V to 36 V)
Wide-Output Voltage Adjust (2.5V to 12.6 V)/(11.85V to 22V)
High Efficiency (Up to 95%)
On/Off Inhibit
Undervoltage Lockout
Output Current Limit
Overtemperature Shutdown
Operating Temperature:-40°C to 85°C
Surface Mount Package Available
Specifications of PTN78000WAZT
|
Mfr
|
Texas Instruments
|
|
Product
|
PTN78000WAZT
|
|
Type
|
Non-Isolated PoL Module
|
|
Number of Outputs
|
1
|
|
Voltage - Input (Min)
|
7V
|
|
Voltage - Input (Max)
|
36V
|
|
Voltage - Output 1
|
2.5 ~ 12.6V
|
|
Current - Output (Max)
|
1.5A
|
|
Applications
|
ITE (Commercial)
|
|
Features
|
OCP, OTP, UVLO
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Efficiency
|
91%
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
5-SMD Module
|
|
Size / Dimension
|
0.75" L x 0.50" W x 0.36" H (19.1mm x 12.7mm x 9.1mm)
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
APPLICATIONS of PTN78000WAZT
HVAC Systems,Test and Measurement, Medical Instrumentation,AC/DC Adaptors Vehicles, Marine, and Avionics
