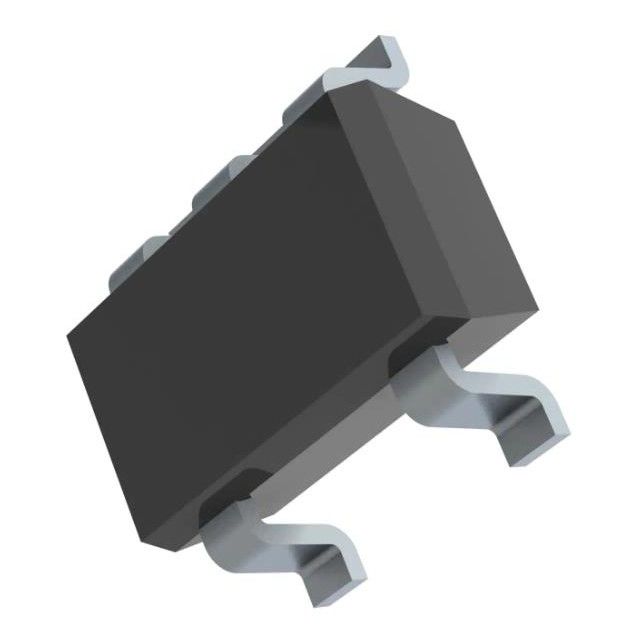

OPA237NA / 3K Integrated Circuit Chip IC OPAMP GP 1 CIRCUIT SOT23-5
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | OPA237NA/3K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | OPA237NA/3K | Slew Rate: | 0.5V/µs |
|---|---|---|---|
| Gain Bandwidth Product: | 1.5 MHz | Current - Input Bias: | 8.5 NA |
| Voltage - Input Offset: | 350 µV | Current - Supply: | 200µA |
| Current - Output / Channel: | 8 MA | Voltage - Supply Span (Min): | 2.7 V |
Product Description
OPA237NA / 3K Integrated Circuit Chip IC OPAMP GP 1 CIRCUIT SOT23-5
General Purpose Amplifier 1 Circuit Rail-to-Rail 8-VSSOP
The OPA237 op amp family is one of Texas Instruments’ MicroAmplifier series of miniature products. In addition
to small size, these devices feature low offset voltage, low quiescent current, low bias current, and a wide supply
range. Single, dual, and quad versions have identical specifications for maximum design flexibility. They are
ideal for single-supply, battery-operated, and space-limited applications, such as PCMCIA cards and other portable instruments.
to small size, these devices feature low offset voltage, low quiescent current, low bias current, and a wide supply
range. Single, dual, and quad versions have identical specifications for maximum design flexibility. They are
ideal for single-supply, battery-operated, and space-limited applications, such as PCMCIA cards and other portable instruments.
Features of OPA237NA/3K
MICRO-SIZE, MINIATURE PACKAGES:
− Single: SOT23-5, SO-8
− Dual: MSOP-8, SO-8
− Quad: SSOP-16 (Obsolete)
LOW OFFSET VOLTAGE: 750µV max
WIDE SUPPLY RANGE:
− Single Supply: +2.7V to +36V
− Dual Supply: 1.35V to 18V
LOW QUIESCENT CURRENT: 350µV max
WIDE BANDWIDTH: 1.5MHz
Specifications of OPA237NA/3K
|
Mfr
|
Texas Instruments
|
|
Series
|
MicroAmplifier™
|
|
Product Status
|
Active
|
|
Amplifier Type
|
General Purpose
|
|
Number of Circuits
|
1
|
|
Output Type
|
-
|
|
Slew Rate
|
0.5V/µs
|
|
Gain Bandwidth Product
|
1.5 MHz
|
|
Current - Input Bias
|
8.5 nA
|
|
Voltage - Input Offset
|
350 µV
|
|
Current - Supply
|
200µA
|
|
Current - Output / Channel
|
8 mA
|
|
Voltage - Supply Span (Min)
|
2.7 V
|
|
Voltage - Supply Span (Max)
|
36 V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
SC-74A, SOT-753
|
|
Supplier Device Package
|
SOT-23-5
|
|
Base Product Number
|
OPA237
|
range (−10 ̊
Environmental & Export Classifications
wh avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
Applications of OPA237NA/3K
• Inverter and motor control
• DC/DC converter
• On-board (OBC) and wireless charger
• Battery management system (BMS)
