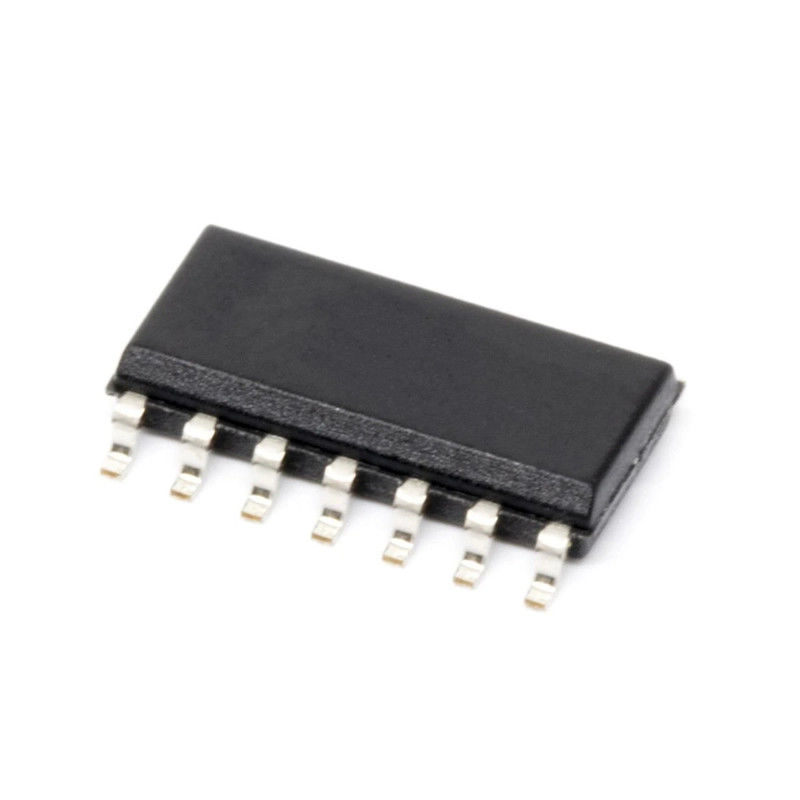

HCPL-0721Photo IC OPTOISO 3750Vrms 1 Channel 10kV/µs CMTI 8-SO Tall
Logic Output Optoisolator 25MBd Push-Pull, Totem Pole 3750Vrms 1 Channel 10kV/µs CMTI 8-SO Tall
FEATURES of HCPL-0721
| •+5V CMOS compatibility |
| • 20-ns max propagation delay skew |
| •High speed: 25 MBd |
| •40-ns max propagation delay |
| 10-kV/μs minimum common mode rejection |
| • –40 to +85°C temperature range |
| • Safety and regulatory approvals: – UL recognized |
| •3750 Vrms for 1 min. per UL 1577 |
| • 5000 Vrms for 1 min. per UL 1577 (for HCPL-772X option 020) |
| – CSA component acceptance notice #5 |
| – IEC/EN/DIN EN 60747-5-5 |
|
• VIORM = 630 Vpeak for HCPL-772X option 060 • VIORM = 567 Vpeak for HCPL-072X option 060 |
APPLICATIONS of HCPL-0721
• Digital fieldbus isolation: CC-Link, DeviceNet, PROFIBUS, SDS
• AC plasma display panel level shifting
• Multiplexed data transmission
•Computer peripheral interface
• Microprocessor system interface
DESCRIPTION of HCPL-0721
Available in either an 8-pin DIP or SO-8 package style respectively, the Broadcom HCPL-772X or HCPL-072X optocouplers utilize the latest CMOS IC technology to achieve outstanding performance with very low power consumption. The HCPL-772X/072X require only two bypass capacitors for complete CMOS compatability.
| High Speed Optocouplers | |
| RoHS: | N |
| SOIC-8 | |
| 25 Mb/s | |
| 1 Channel | |
| Photo IC | |
| 3750 Vrms | |
| 5 V | |
| 10 mA | |
| 150 mW | |
| - 40 C | |
| + 85 C | |
| Tube | |
| Fall Time: | 8 ns |
| Height: | 3.17 mm |
| Length: | 5.08 mm |
| Output Current: | 10 mA |
| Product Type: | High Speed Optocouplers |
| Rise Time: | 9 ns |
| Factory Pack Quantity: | 100 |
| Subcategory: | Optocouplers |
| Width: | 3.94 mm |
| Unit Weight: | 358 mg |
