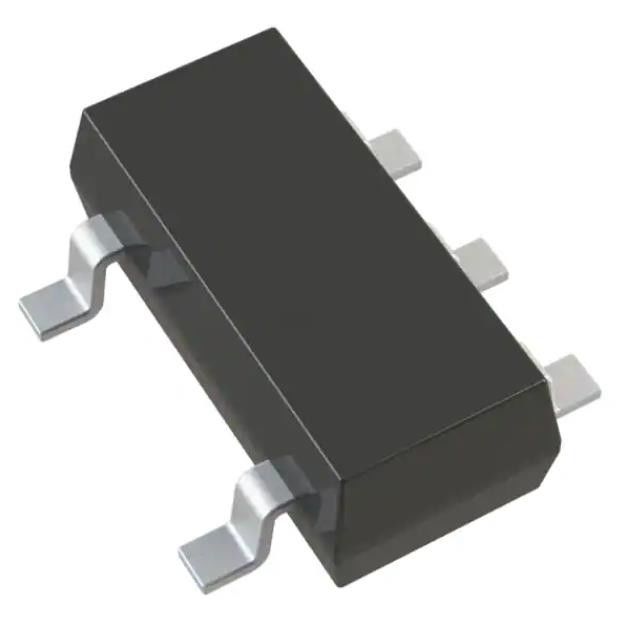

LT3014ES5#TRPBF Linear Voltage Regulator IC Positive Adjustable 1 Output 20mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LT3014ES5#TRPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Voltage - Input (Max): | 80V | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 1.22V | Voltage - Output (Max): | 60V |
| Voltage Dropout (Max): | 0.57V @ 20mA | Current - Output: | 20mA |
| Current - Quiescent (Iq): | 20 µA | Current - Supply (Max): | 1 MA |
| High Light: | LT3014ES5#TRPBF,LT3014ES5#TRPBF Linear Voltage Regulator IC |
||
Product Description
LT3014ES5#TRPBF Linear Voltage Regulator IC Positive Adjustable 1 Output 20mA
Specifications of LT3014ES5#TRPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 80V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 60V |
| Voltage Dropout (Max) | 0.57V @ 20mA |
| Current - Output | 20mA |
| Current - Quiescent (Iq) | 20 µA |
| Current - Supply (Max) | 1 mA |
| PSRR | 70dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| Base Product Number | LT3014 |
Features of LT3014ES5#TRPBF
* Wide Input Voltage Range: 3V to 80V
* Low Quiescent Current: 7µA
* Low Dropout Voltage: 350mV
* Output Current: 20mA
* LT3014HV Survives 100V Transients (2ms)
* No Protection Diodes Needed
* Adjustable Output from 1.22V to 60V
* 1µA Quiescent Current in Shutdown
* Stable with 0.47µF Output Capacitor
* Stable with Aluminum, Tantalum or Ceramic Capacitors
* Reverse-Battery Protection
* No Reverse Current Flow from Output
* Thermal Limiting ■ Available in 5-Lead ThinSOTTM and 8-Lead DFN Packages
Applications of LT3014ES5#TRPBF
* Low Current High Voltage Regulators
* Regulator for Battery-Powered Systems
* Telecom Applications
* Automotive Applications
Environmental & Export Classifications of LT3014ES5#TRPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
