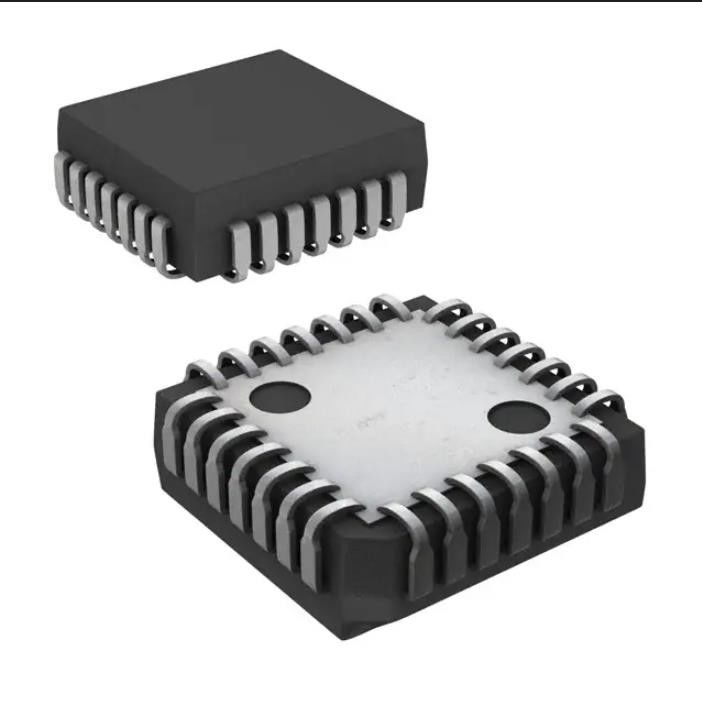

ADC0808CCVX/NOPB 8 Bit Analog To Digital Converter Adc 8bit Sar 28PLCC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADC0808CCVX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tape & Reel (TR) | Product Status: | Active |
|---|---|---|---|
| Number Of Bits: | 8 | Sampling Rate (Per Second): | 10k |
| Number Of Inputs: | 8 | Input Type: | Single Ended |
| Data Interface: | Parallel | Configuration: | MUX-S/H-ADC |
| Highlight: | ADC0808CCVX/NOPB,8 Bit Analog To Digital Converter,Adc 8bit Sar 28PLCC |
||
Product Description
ADC0808CCVX/NOPB Integrated Circuits IC Adc 8bit Sar 28plcc
ADC0808CCVX/NOPB Integrated Circuits IC Chip Adc 8bit Sar 28plcc
8 Bit Analog to Digital Converter 8 Input 1 SAR 28-PLCC (11.51x11.51)
Specifications of ADC0808CCVX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 8 |
| Sampling Rate (Per Second) | 10k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 4.5V ~ 6.5V |
| Voltage - Supply, Digital | 4.5V ~ 6.5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 28-LCC (J-Lead) |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Mounting Type | Surface Mount |
| Base Product Number | ADC0808 |
Features of ADC0808CCVX/NOPB
• Easy Interface to All Microprocessors
• Operates Ratiometrically or with 5 VDC or
Analog Span Adjusted Voltage Reference
• No Zero or Full-Scale Adjust Required
• 8-Channel Multiplexer with Address Logic
• 0V to VCC Input Range
• Outputs meet TTL Voltage Level Specifications
• ADC0808 Equivalent to MM74C949
• ADC0809 Equivalent to MM74C949-1
Applications of ADC0808CCVX/NOPB
• Resolution: 8 Bits
• Total Unadjusted Error: ±½ LSB and ±1 LSB
• Single Supply: 5 VDC
• Low Power: 15 mW
• Conversion Time: 100 μs
Environmental & Export Classifications of ADC0808CCVX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
