TPS62135RGXR Buck Switching Regulator IC 0.8V 1 Output 4A 11-VFQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS62135RGXR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Positive | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 3V | Voltage - Input (Max): | 17V |
| Voltage - Output (Min/Fixed): | 0.8V | Voltage - Output (Max): | 12V |
| Current - Output: | 4A | Frequency - Switching: | 2.5MHz |
| High Light: | Buck Switching Regulator IC,TPS62135RGXR Regulator IC,TPS62135RGXR 0.8V 1 Output |
||
Product Description

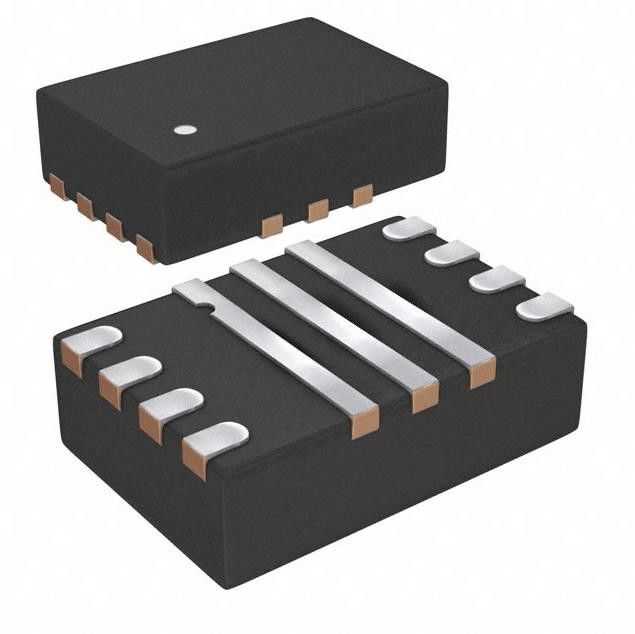

TPS62135RGXR Buck Switching Regulator IC 0.8V 1 Output 4A 11-VFQFN
IC REG BUCK ADJ 3.5A 11VQFN
Specifications of TPS62135RGXR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 12V |
| Current - Output | 4A |
| Frequency - Switching | 2.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 11-VFQFN |
| Supplier Device Package | 11-VQFN-HR (2x3) |
| Base Product Number | TPS62135 |
Features of TPS62135RGXR
• Output Voltage Accuracy ± 1% (PWM mode)
• Input Voltage Range: 3 V to 17 V
• Quiescent Current 18 µA Typ
• Output Voltage from 0.8 V to 12 V
• Adjustable Soft-Start
• Forced PWM or PWM/PFM operation
• Typical switching frequency of 2.5MHz in forced PWM
• Precise ENABLE input allows
– User-Defined Undervoltage Lockout
– Exact Sequencing
• 100% Duty Cycle Mode
• Automatic Efficiency Enhancement AEE™
• DCS-Control™ Topology
• Available with Active Output Discharge
• Optional HICCUP Overcurrent Protection
• Power Good Output
• Available in 3-mm x 2-mm VQFN Package
Applications of TPS62135RGXR
• Standard 12-V Rail Supplies
• POL for Connected Standby Requirements
• POL Supply from Single or Multiple Li-Ion Battery
• Gaming Consoles, SSD Drives
• Mobile and Embedded Computers
Environmental & Export Classifications of TPS62135RGXR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
