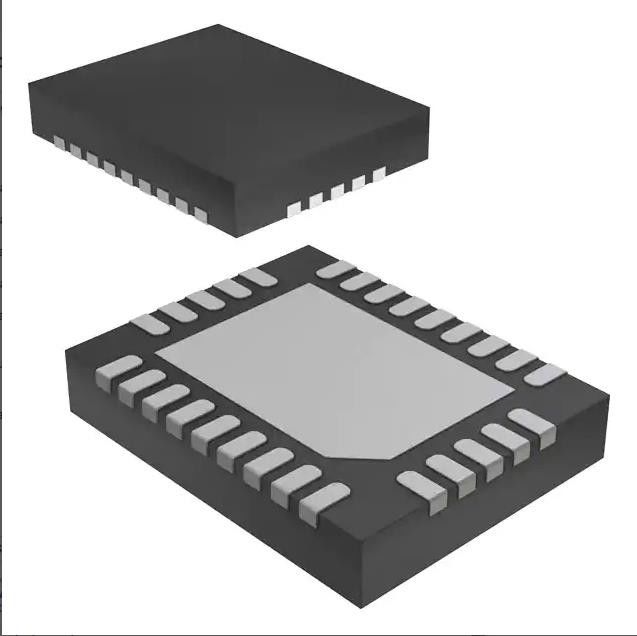

TPS53515RVER Buck Regulator IC Chip IC REG BUCK ADJ 12A 28VQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS53515RVER |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Step-Down |
|---|---|---|---|
| Output Configuration: | Positive | Topology: | Buck |
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 1.5V | Voltage - Input (Max): | 18V |
| High Light: | Buck Regulator IC Chip,TPS53515RVER Buck Regulator IC,REG BUCK ADJ 12A 28VQFN |
||
Product Description
TPS53515RVER IC Chip Ic Reg Buck Adj 12a 28vqfn Buck Switching Regulator
|
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 12A 28-VFQFN Exposed Pad
|
Specifications of TPS53515RVER
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SWIFT™, D-CAP3™, Eco-Mode™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reelﾂｮ | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.5V |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 12A |
| Frequency - Switching | 200kHz ~ 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-VQFN-CLIP (4.5x3.5) |
| Base Product Number | TPS53515 |
Features of TPS53515RVER
• Integrated 13.8-mΩ and 5.9-mΩ MOSFETs With 12-A Continuous Output Current
• Supports All Ceramic Output Capacitors
• Reference Voltage 600 mV ±0.5% Tolerance
• Output Voltage Range:0.6 V to 5.5 V
• D-CAP3TM Control Mode With Fast Load-Step Response
• Auto-Skipping Eco-mode TM for High Light-Load Efficiency
• FCCM for Tight Output Ripple and Voltage Requirements
• Eight Selectable Frequency Settings from 250 kHz to 1 MHz
• Precharged Startup Capability
• Built-in Output Discharge Circuit
• Open-Drain Power-Good Output
• 3.5 mm×4.5 mm,28-Pin,VQFN-CLIP Package
Applications of TPS53515RVER
Environmental & Export Classifications of TPS53515RVER
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
