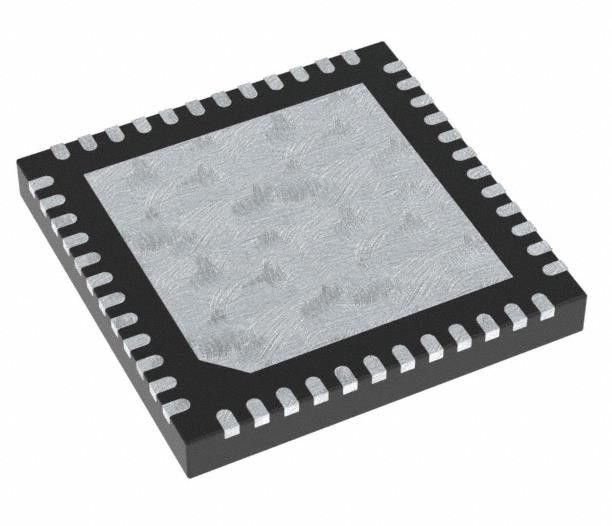

KSZ9031RNXIC Integrated IC Chip 4/4 Transceiver IC Full Ethernet 48-QFN (7x7)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | KSZ9031RNXIC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Transceiver | Protocol: | Ethernet |
|---|---|---|---|
| Number Of Drivers/Receivers: | Full | Voltage - Supply: | 1.8V, 2.5V, 3.3V |
| Operating Temperature: | -40°C ~ 85°C | Mounting Type: | Surface Mount |
| High Light: | KSZ9031RNXIC,KSZ9031RNXIC Integrated IC Chip,48-QFN Transceiver IC |
||
Product Description
KSZ9031RNXIC Integrated IC Chip With 4/4 Transceiver Full Ethernet 48-QFN (7x7)
IC TRANSCEIVER FULL 4/4 48QFN
Specifications of KSZ9031RNXIC
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Drivers, Receivers, Transceivers | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tray |
| Product Status | Active |
| Type | Transceiver |
| Protocol | Ethernet |
| Number of Drivers/Receivers | 4/4 |
| Duplex | Full |
| Data Rate | - |
| Voltage - Supply | 1.8V, 2.5V, 3.3V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) |
| Base Product Number | KSZ9031 |
Features of KSZ9031RNXIC
• Single-Chip 10/100/1000 Mbps Ethernet Transceiver Suitable for IEEE 802.3 Applications
• RGMII Timing Supports On-Chip Delay According to RGMII Version 2.0, with Programming Options for External Delay and Making Adjustments and Corrections to TX and RX Timing Paths
• RGMII with 3.3V/2.5V/1.8V Tolerant I/Os
• Auto-Negotiation to Automatically Select the Highest Link-Up Speed (10/100/1000 Mbps) and Duplex (Half/Full)
• On-Chip Termination Resistors for the Differential Pairs
• On-Chip LDO Controller to Support Single 3.3V Supply Operation – Requires Only One External FET to Generate 1.2V for the Core
• Jumbo Frame Support up to 16 KB
• 125 MHz Reference Clock Output
• Energy Detect Power-Down Mode for Reduced Power Consumption When the Cable is Not Attached
• Wake-On-LAN (WOL) Support with Robust Custom-Packet Detection
• Programmable LED Outputs for Link, Activity, and Speed
• Baseline Wander Correction
• LinkMD TDR-Based Cable Diagnostic to Identify Faulty Copper Cabling
• Parametric NAND Tree Support to Detect Faults Between Chip I/Os and Board
• Loopback Modes for Diagnostics
• Automatic MDI/MDI-X Crossover to Detect and Correct Pair Swap at all Speeds of Operation
• Automatic Detection and Correction of Pair Swaps, Pair Skew, and Pair Polarity
• MDC/MDIO Management Interface for PHY Register Configuration
• Interrupt Pin Option
• Power-Down and Power-Saving Modes
Applications of KSZ9031RNXIC
• Laser/Network Printer
• Network Attached Storage (NAS)
• Network Server
• Gigabit LAN on Motherboard (GLOM)
• Broadband Gateway
• Gigabit SOHO/SMB Router
• IPTV
• IP Set-Top Box
• Game Console
• Triple-Play (Data, Voice, Video) Media Center
• Industrial Control
• Automotive In-Vehicle Networking
Environmental & Export Classifications of KSZ9031RNXIC
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
